A Reliable & Stable Supplier of Dead Break Elbow in China since 2010
We are
- ISO 9001 Certificated Factory
- Over 15 years manufacturing Experience
- Fully comply with requirement of IEEE/ANSI Standard
- In-house testing lab for routine & type test
- Provide 36 months warranty of quality and performance
What is a Dead Break Elbow
Here refers to a cable connector, which is used to bridge AEIC or ICEA standard power cable in a stranded, compressed or compacted conductor to a pad mounted transformer,a switchboard or some other electrical equipment with bushings.

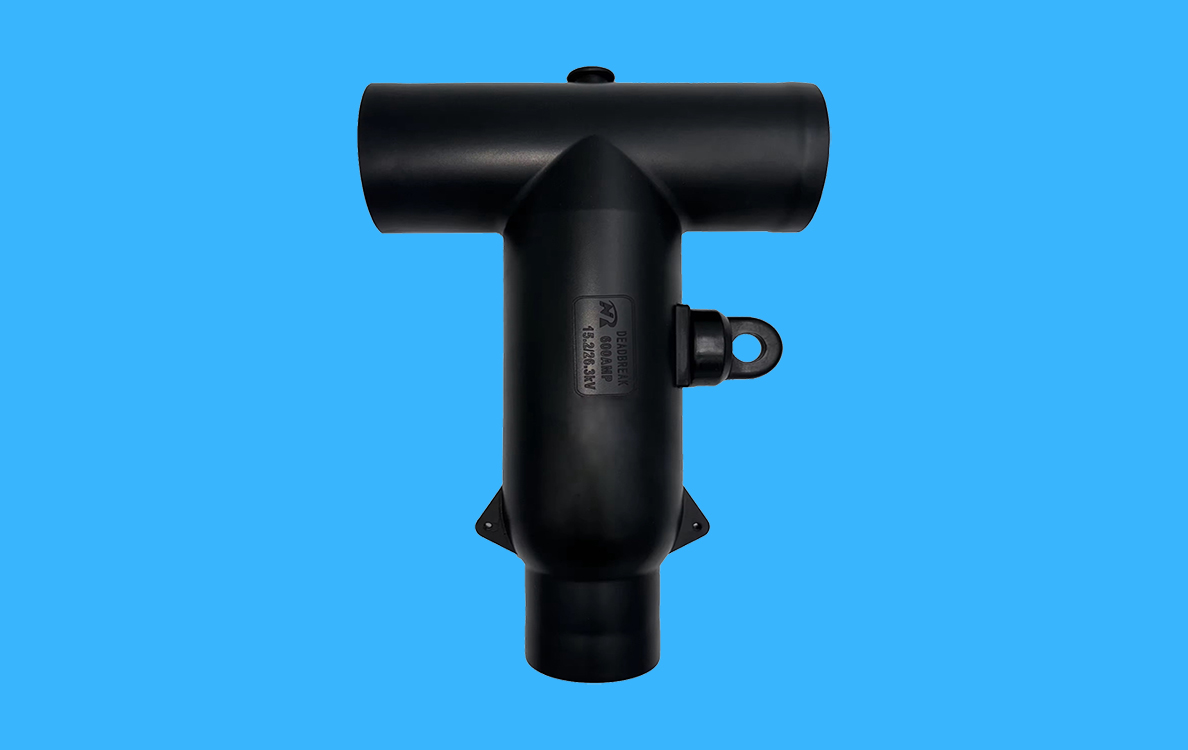

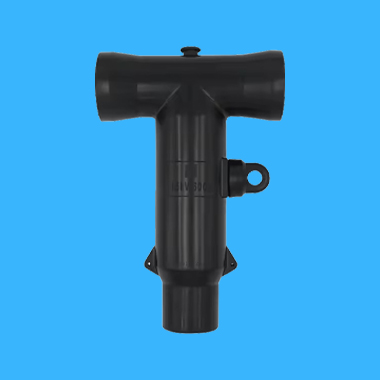

T-shaped dead break elbow is bolted onto a bushing insert through screwing a stud into the threads pre-assembled inside of the bushing insert. this means you can not pull it off freely to break the load and you have to unscrew the bolt & remove the T-body connector.
Except this dead break elbow, PowerTel is able to provide you other cable accessories, like load bread elbow, bushing inserts, stand-off bushings, load break junctions, elbow surge arrester a complete product chain to connect your pad mounted transformers properly, safely and reliably.
Dead Break Elbow Classified by Amperage Rating
In terms of Amperage rating, it is 600A & 900A.

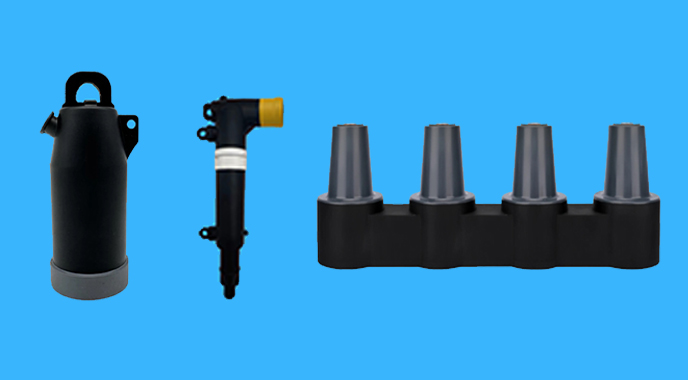

Associated Cable Accessories for Dead Break Elbow
-

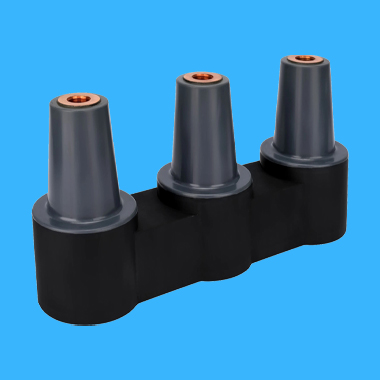

Dead Break Junction -

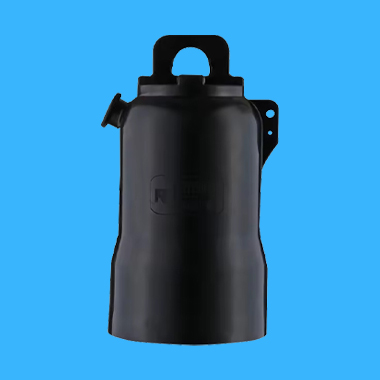

Insulated Protection Cap
Product Feature Box
Our Manufacturing Facilities for These Dead Break Elbows
State of the art manufacturing facilities, plus our strictest quality control in each manufacturing process, guarantted a highest quality of this dead break elbow, which further ensure your system running smoothly and safely.
Package supply of all cable accessories for your various electrical distribution system
Except this dead break elbow, we are available of all the other cable accessories to fit your power system voltage rated less than 35 kV & 900 Amperage.
Fast Production & Delivery Time
Drawing our large stock of each type of cable accessories, we are ready to ship the goods out in 5 days, once you approved our proposed drawings for these dead break elbow.
Looking for Manufacturer Representatives for these Dead Break Elbows
We would like to work or grow up together with a well experienced engineer, who know what is a dead break elbow and how to demonstrate to our clients, and he can provide necessary technical support and help our clients to install these cable accessories.

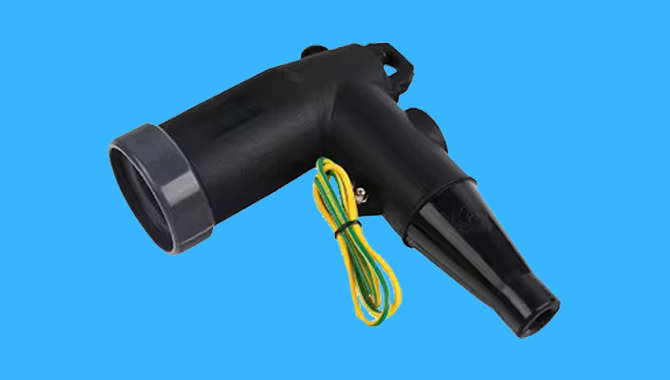

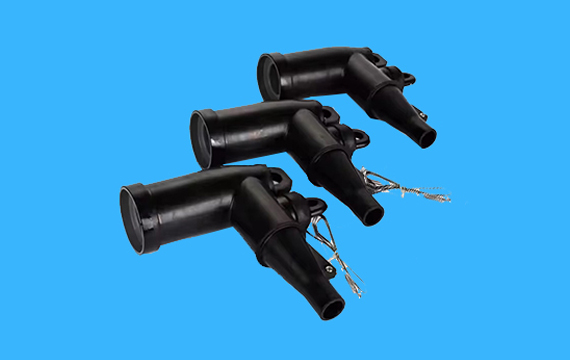

Load Break Elbow VS Dead Break Elbow
To be simply, when current flow in a power system less than 200 Amperage, a load break elbow can be used, while any power system over 200 or more amperage, a dead break elbow considered to be used.
One more important thing , In a radial feed system, people always have a right rating selection of this load break elbow connector and its associated bushing insert. however, in a loop feed system, people sometimes choose a wrong size of this dead break elbow to fit the bushing insert. The reason is that, in the first transformer in a loop feed system, it is requiring to carry all amperage in downstream transformers. At this situation, you have to choose a 600A or 900A rated dead break elbow & its appropriate bushing insert to support all current in the loop, based on the quantity of transformers in the loop.
Related Product
Drawing on over 20 years experience in manufacturing this dead break elbow and all other associated cable accessories , our expert engineers are able to help you to select a right type of dead break elbow and it’s bushing insert to fit your installed transformers or switchgear properly, thus to any safety risks in your radial or loop feed system.
Why choose our dead break elbow ?
- Highest quality
All raw materials we used to manufacture these dead break elbow is the best quality, plus our strictest quality control process, which guarantees all our products meet or exceed the standard requirements of IEEE/ANSI 386 and other related specifications.
- Lowest price
Through our scientific management and cost control policy, plus our innovative logistics system, we are able to provide you a lowest unit price of these dead break elbow in the world.
- Fast delivery or lead time
Drawing on our large stock of each item, we are able to ship the goods in 5 days once you confirm the exact types of the product and its required quantity.
If you need these dead break elbow to complete your project on time or some delivery time issue with your current suppliers , please feel free to contact our expert engineers, they will help you on these issues out.
Steps to install a 600 Amp dead break elbow
- Preparation some necessary tools, such as a power cable cutting & stripping tool, a cable lug crimp, a power drill, a torque wrench, a cable brush, and a ruler & maker etc.
- Mark the pole cable in a right position to ensure a seamless connection and remove the cable outer sheath accordingly.
- Pull back the copper neutral wires and fix these wires on the cable properly by using some electrical tapes.
- Remove power cable insulation and its shield layer to expose the cable conductor in a suitable length to install the cable lug.
- Remove the shield layer of cable insulation in an appropriate length to install a cable adapter; in this step, assuring to have a perfect square cut to avoid any potential damage to cable insulation layer.
- Compress the cable lug to have a full contact with the cable conductor; this step is extremely important, because if not compressed completely, it will potentially cause some heat after the energize the transformer.
- Put the T-body connector onto the finished cable lug and cable adapter in a correct direction and connect neutral wire to T-body connector
- Finally, install the finished cable connector onto the bushing insert on a pad mounted transformer or a switchboard.
If you still have any questions about this dead break elbows and how to install them, please feel free to contact our expert engineers, and they will help you the issues out.
