A Reliable & Stable Supplier of Load Break Elbow in China since 2010
We are
- ISO 9001 Certificated Factory
- Over 15 years manufacturing Experience
- Fully understood all technical requirement of IEEE/ANSI Standard
- In-house testing lab for routine & type test
- Provide 36 months warranty of quality and performance

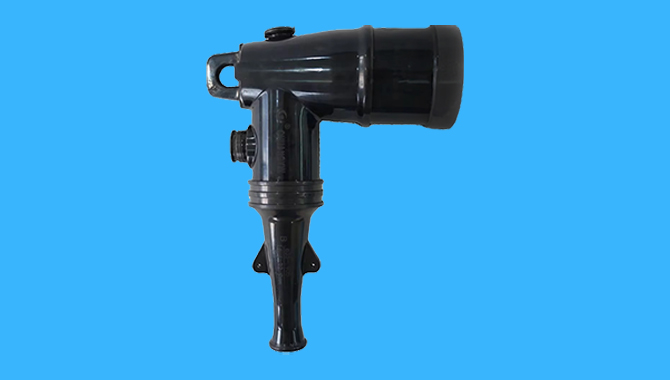

What is a Load Break Elbow
It is used to connect AEIC or ICEA standard power cables with a single aluminum or copper conductor to pad mounted transformers. It is made up of two main parts, an insulated elbow-shaped body ,which allows for flexibility in connecting cables at various angels; load break probe, made of tin-plated copper, and a ablative material used on one end of the probe, which has a strong capability to extinguish an potential arc when switching on and off the elbow or a fault occurred.
Drawing on technical expertise and continuous R & D on these cable accessories, except this load break elbow, we are also available for all the other components, such as dead break elbow, package supply of all these cable accessories will help you to complete your electrical distribution system efficiently & cheaply.
Please contact us at info@powertel-solutions.com for a complete product catalogue for this load break elbow and other associated cable accessories.
Load Break Elbow Classified by Voltage Level

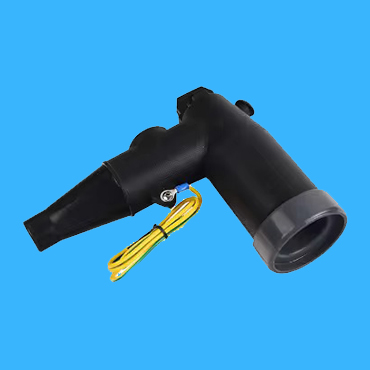

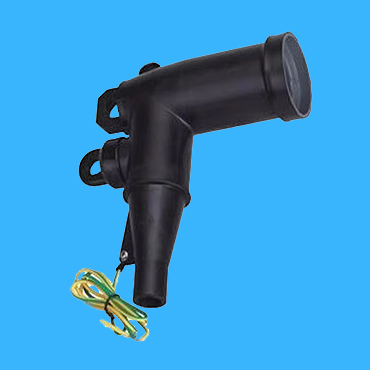

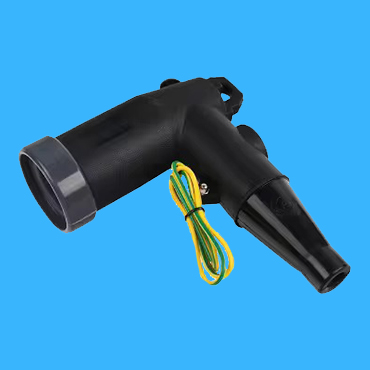

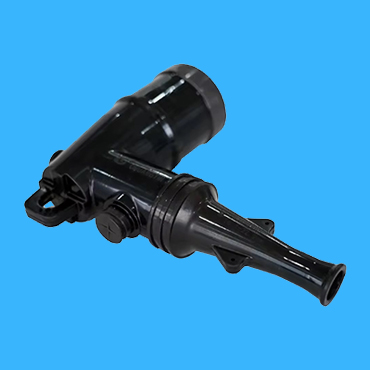

In terms of voltage level, it is 15 kV, 25 Kv and 35 kV.
Load Break Elbow Category by its Rated Amperage
In accordance with Amperage rating, it is 200A, 600A & 900A.
-
600 A -
900 A
Product Feature Box
Our Manufacturing Facilities for These Load Break Elbows
State of the art manufacturing facilities, which make us have a complete quality control from semi-conductive insert & shielding layer, to its compressed conductor & loadbeak probe.
Highest Quality Raw Materials Used for Manufacturing These Elbow Connectors
High quality peroxide-cured EPDM insulation material assuring these load break elbow for a reliable field performance.
Exceed the standard requirement of ANSI/IEEE 386
All our loadbreak elbow meet or exceed the standard requirement of ANSI/IEEE 386; Fully compatible with all the other power cable accessories required by standard ANSI/IEEE 386
Full range of load break elbow & other cable accessories are available here
Full range of load break elbow available here , voltage rated at 15/25/35 kV, current rated at 200/600/900 Amperage; and other associated components,like dead break elbow, load break junctions etc.
Fast Production & Delivery Time
Drawing on our large production capacity, we did have a large stock for this load break elbow; Once you approved the exact type of product and its quantity, we are ready to ship the goods in 7 days; And another 3 or 4 weeks for a normal ocean shipping time, and 3 or 4 days for air shipping time.
Looking for Manufacturer Representatives for these Load Break Elbows
We understood the importance of a local partner to demonstrate our products and after-sale, technical support for these load break elbows, and we are always looking for manufacturer representatives to help us to build up our brand.
Load Break Elbow VS Dead Break Elbow

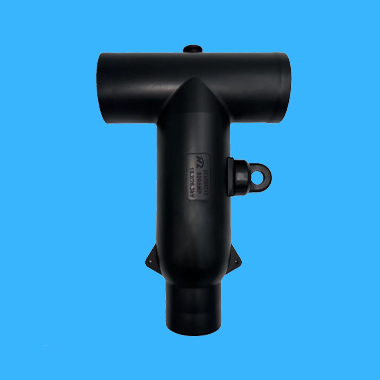

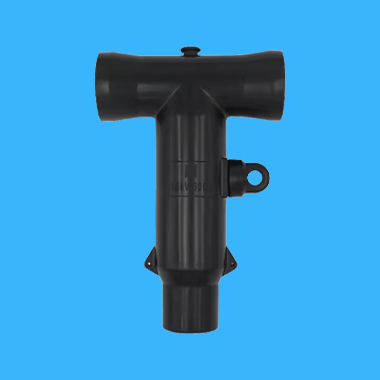

Opposite to an dead break elbow, a load break elbow can removed or connected freely to the transformer, no need to switch off a transformer when it is necessary, but some special tools are required when do the operations, such as a hot stick etc. Meanwhile, this load break elbow mostly used in a radial feed pad mounted transformer or a single phase pad mounted transformer, and some used in a loop feed pad mounted transformer, but for dead break elbow, normallu in a much higher amperage rate, and used in a loop with several units of transfomers, assembled together with a T-connector.
Related Product
Why Choose our Load Break Elbow
- Highly quality raw materials used to make these load break elbow, fully comply with the requirement of standard IEEE 386 and other related standards.
- A prompt delivery time , drawing our strong production capacity of these load break elbow, and a large stock of each item; we are ready to ship the goods in 7 days after you approved the manufacturing drawings.
- Free of these load break elbow, if you are our loyal customers for pad mounted transformers, we will provide you these items free of charge; we will ship the pad mounted transformers, load break elbow, and other cable accessories in a single shipment, thus will save your time to discuss with other suppliers, and save your costs a lot, and also will avoid some theft and loss for some different shipments.
- If you have any difficulties to source this load break elbow or a delivery time issue of this load break elbow, please feel free to contact our expert engineer, we will provide a much better solution than you expect to have; 7 days short production time, plus our innovative logistics system, which will help you to complete your projects on or ahead of time schedule.
- Except this load break elbow and other associated cable accessories for pad mounted transformer or a switchboard, based on our engineering capabilities, our expert engineers can help you to figure out a single line diagram, and right types of the products, including pad mounted transformers, this load break elbows, bushing inserts, insulated protection cap, AEIC & ICEA standard power cables, MV switchgear, UL 891 swithchboard and its associated panel boards, used in your electircal distribution system. At this one-stop buy, it will save your time & costs a lot while assuring a seamless connection between these connection and improve your supply chain efficiency and mitigate the risks.
